Various Tascam TEAC Fostex Rack Ears Rails black (pair) R8 38 22-2 X-300 X-7 X-3 A-2 A-4 A-8, Model 80 A-3440

Various Tascam TEAC Fostex Rack Ears Rails black (pair) R8 38 22-2 X-300 X-7 X-3 A-2 A-4 A-8, Model 80 A-3440

£45.00



Reel to Reels look way cool in a Rack so on odd occasions I come across a unit that is going to be parted out, I have saved these rails till I had a few then have had some copies bent up to suit standard rack units.

Made from Aluminium angle and CNC cut notches then sanded, primed and painted in a matt type finish

NEW IN STOCK A-3440

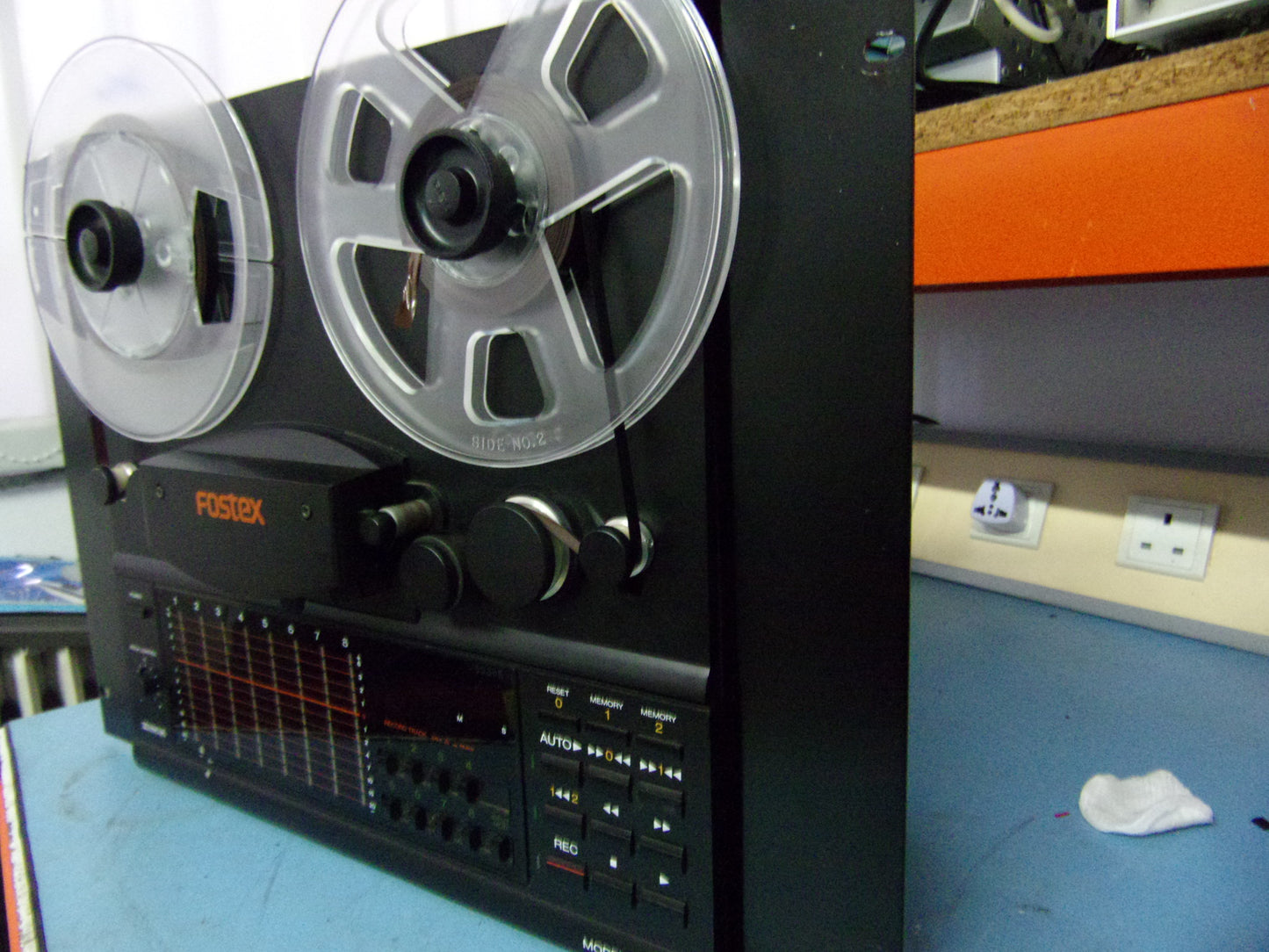

Fostex R8 Black

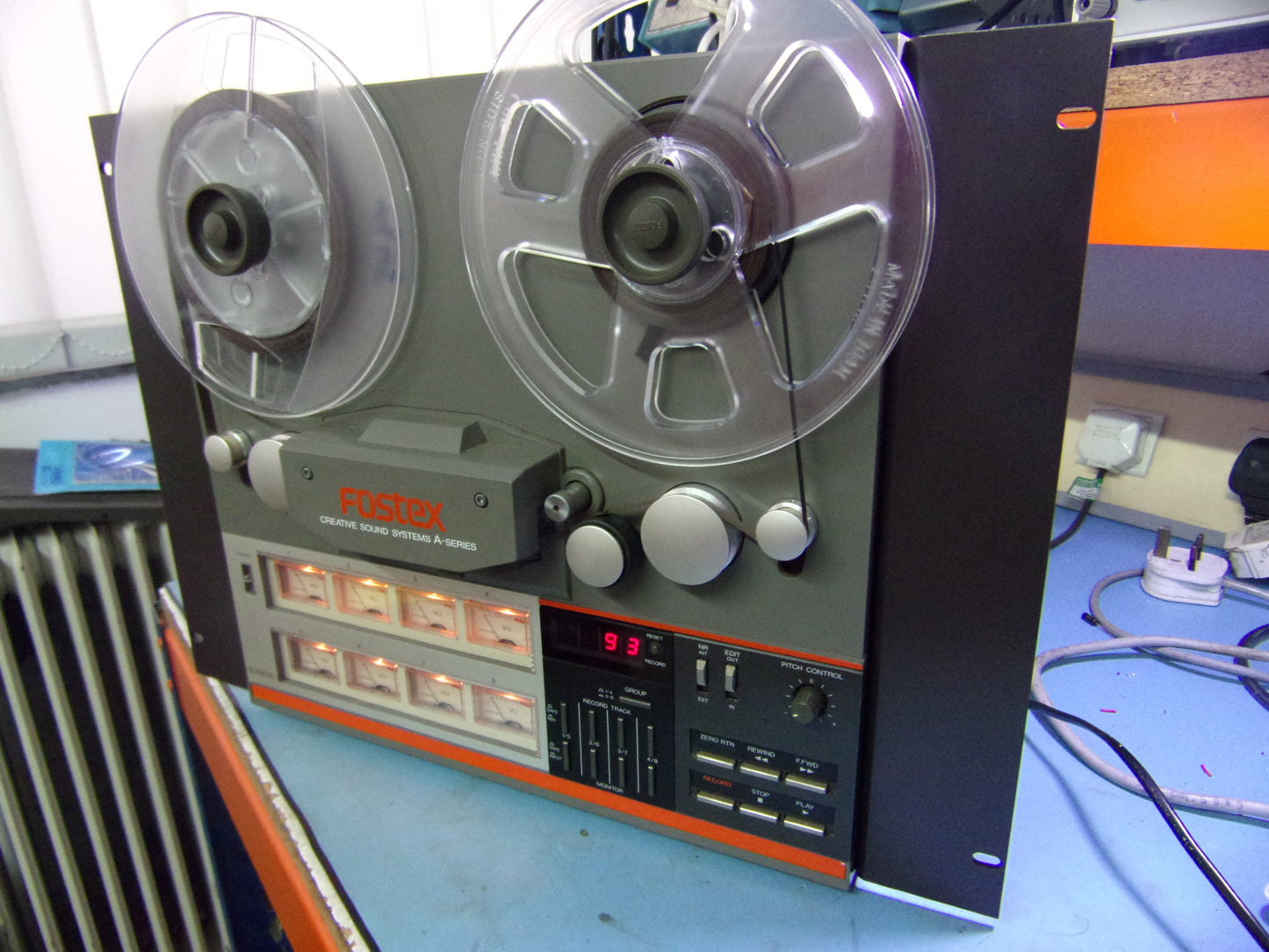

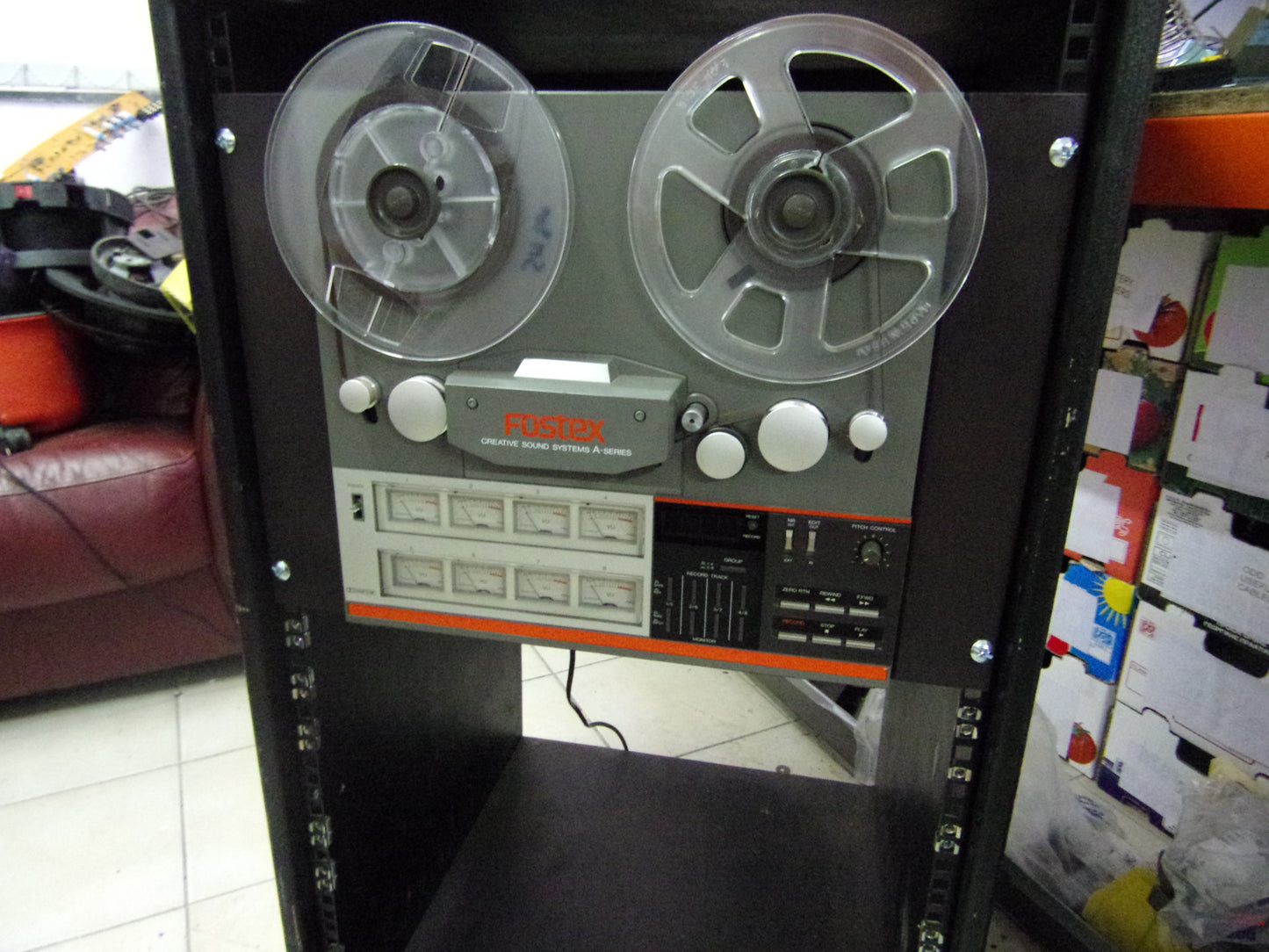

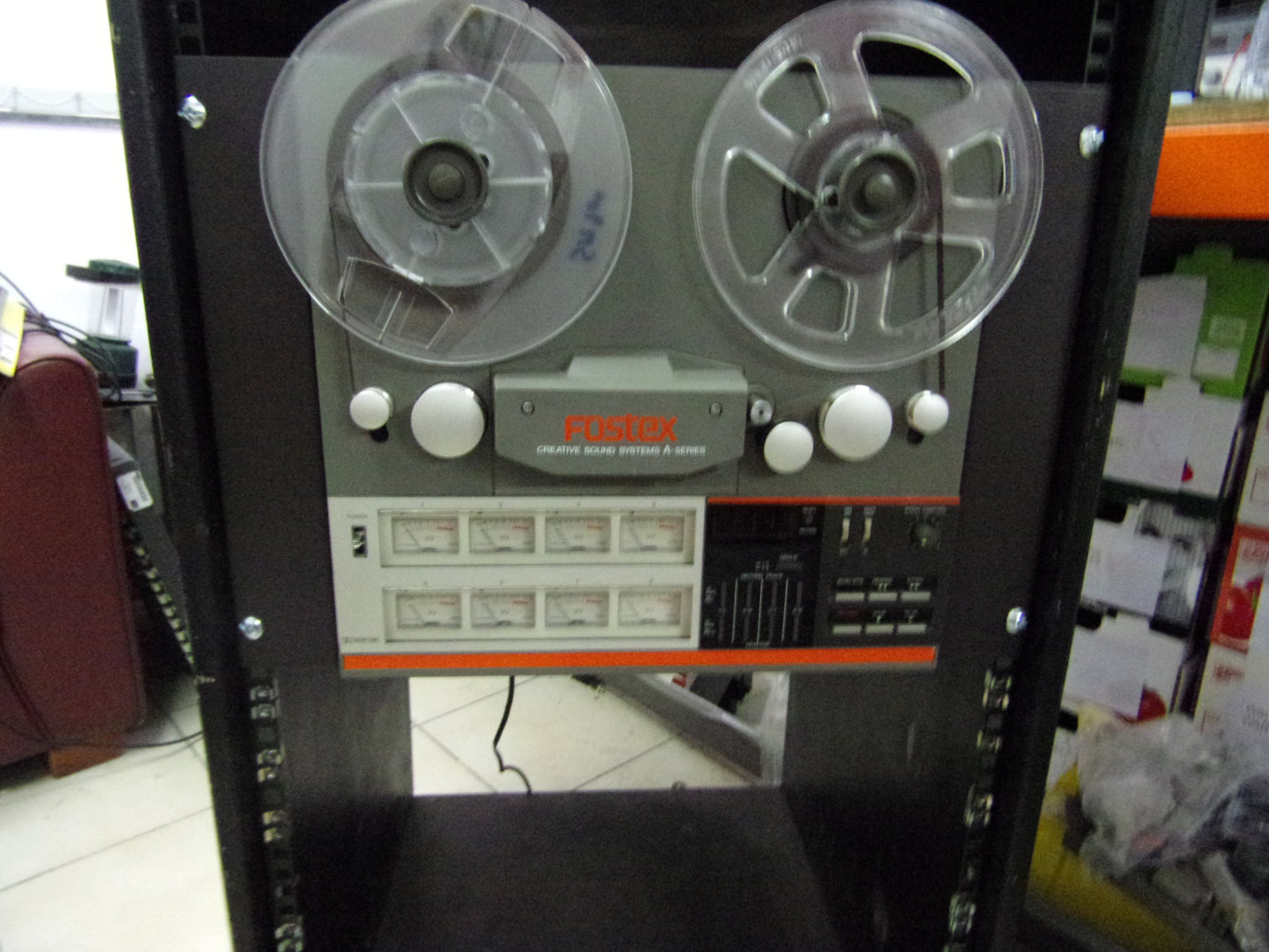

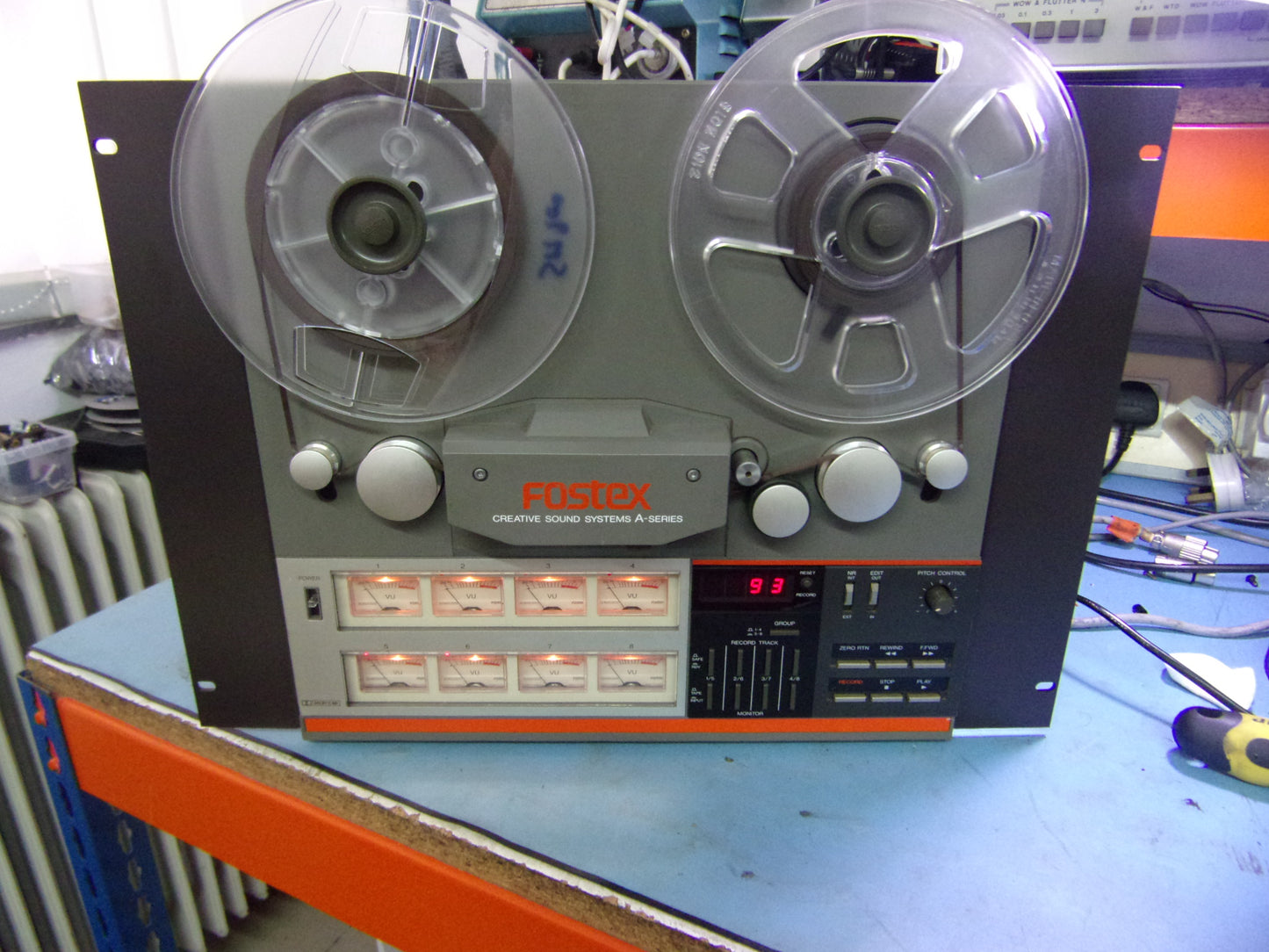

Fostex A-2- A-4 A-8  (brown)

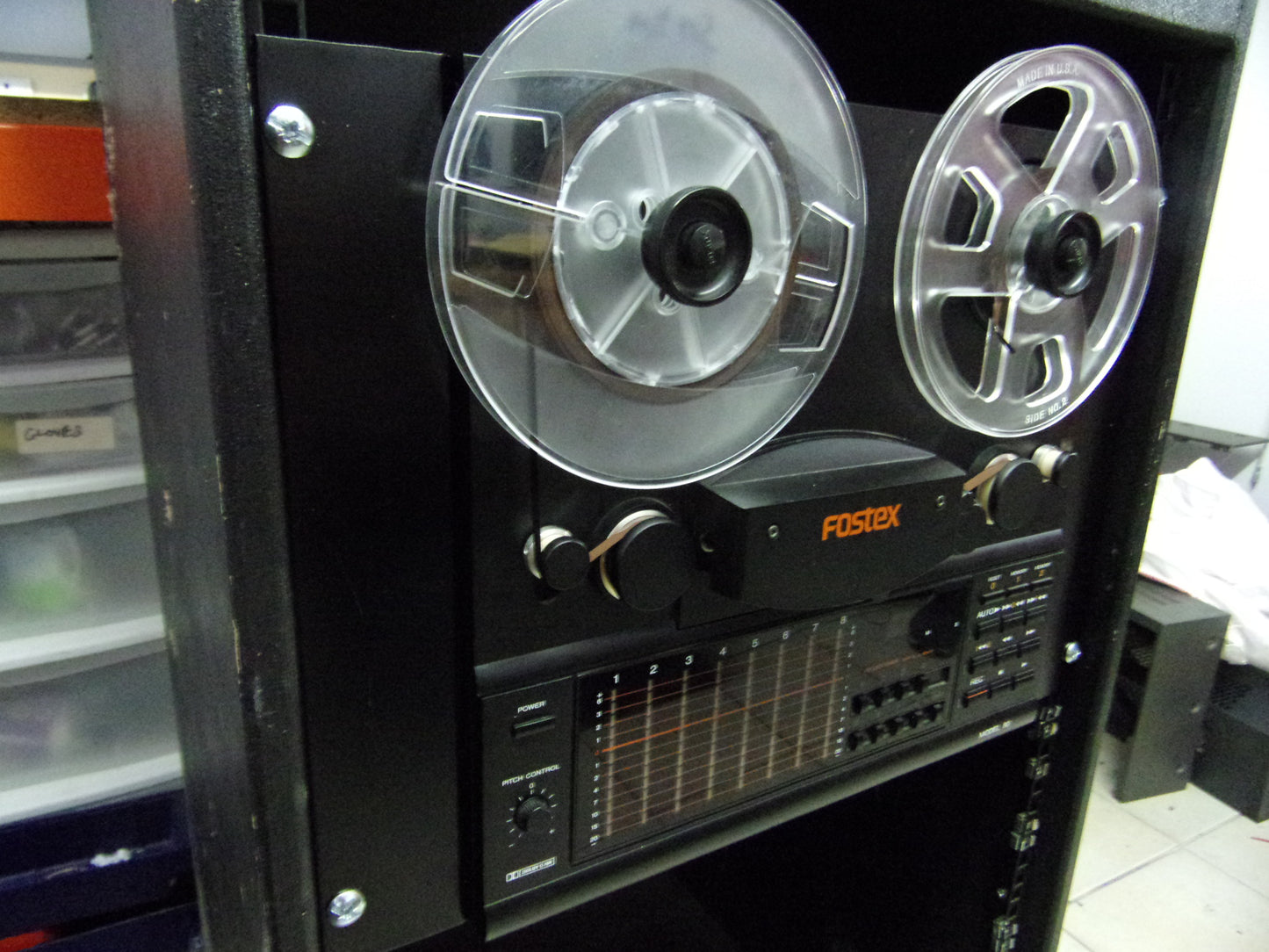

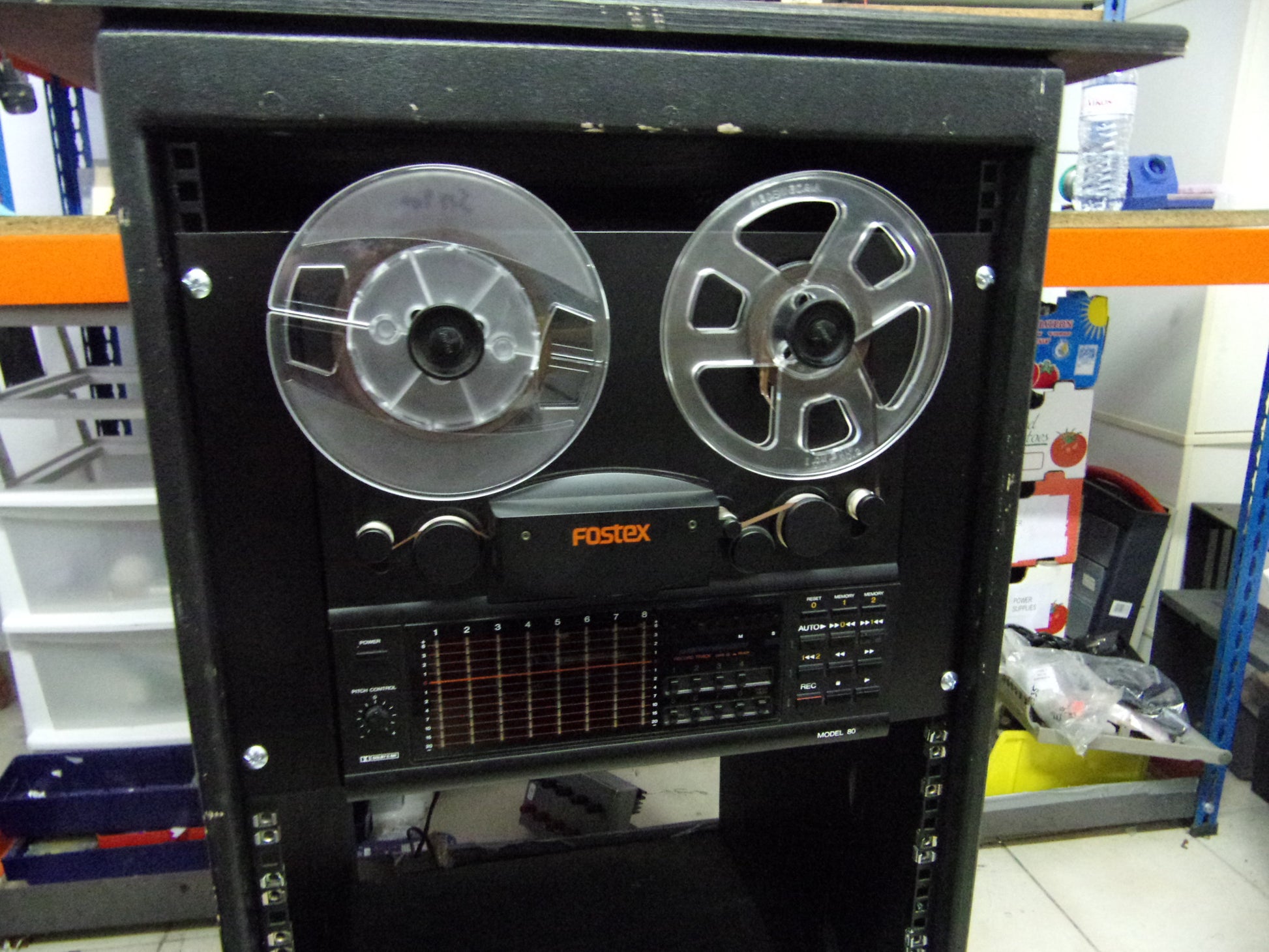

Fostex Model 80 (black)

Tascam 22-2 (Brown)

Tascam X-300 X-7 X-3 and many others (Black)

(these are same size as the 22-2 and probably fit all models of this size with height

 Tascam  22-4 Black

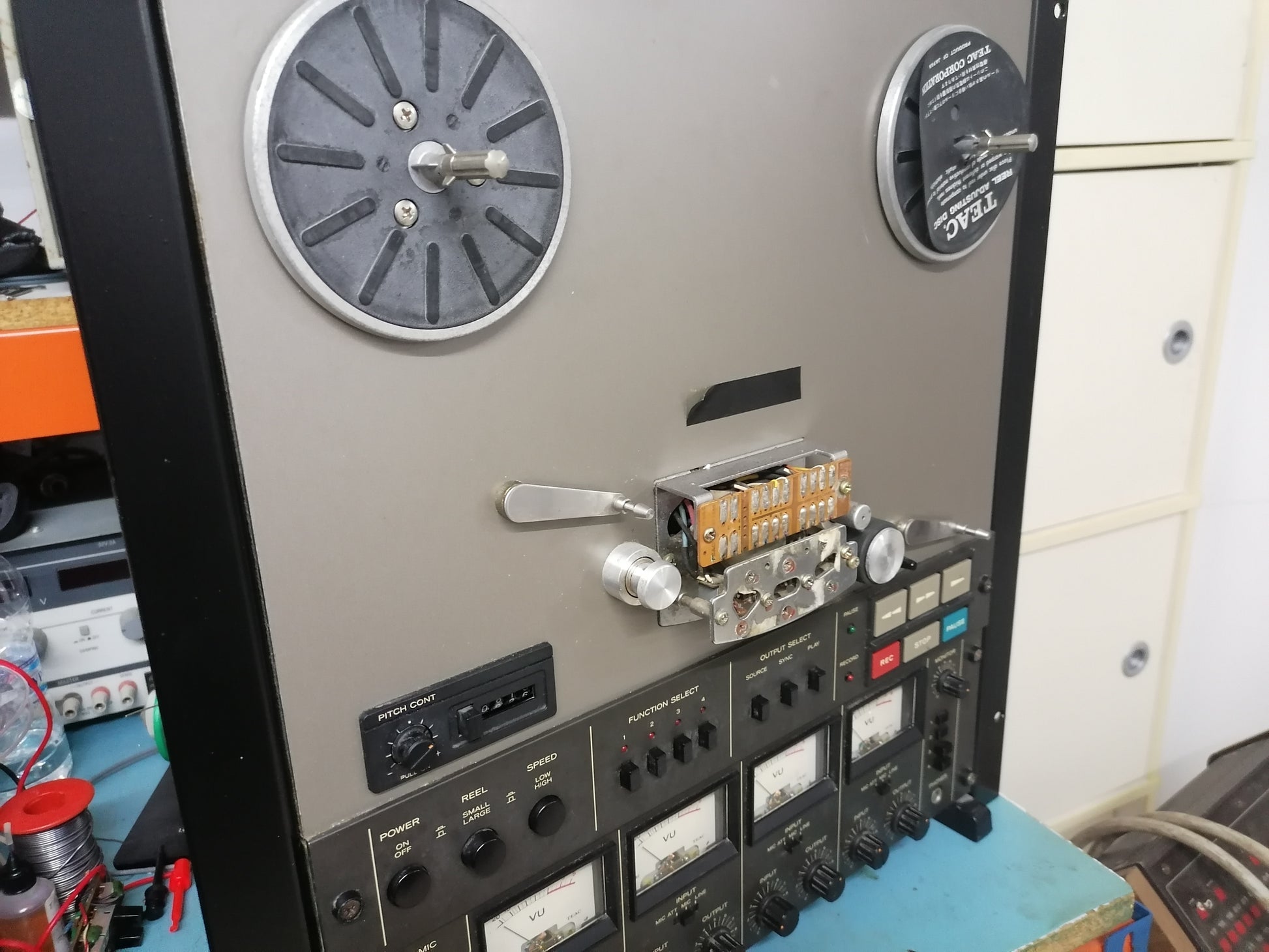

Tascam 38 Brown (very cool) not sure if will also fit the 32 34 yet as dont have one to test Teac original part number RM-300

The Tascam 38 is drilled as original rack specifications total front length 443mm holes 37mm 137mm 303mm 405mm approx at centre of the hole, so if you have a 32 34, please check

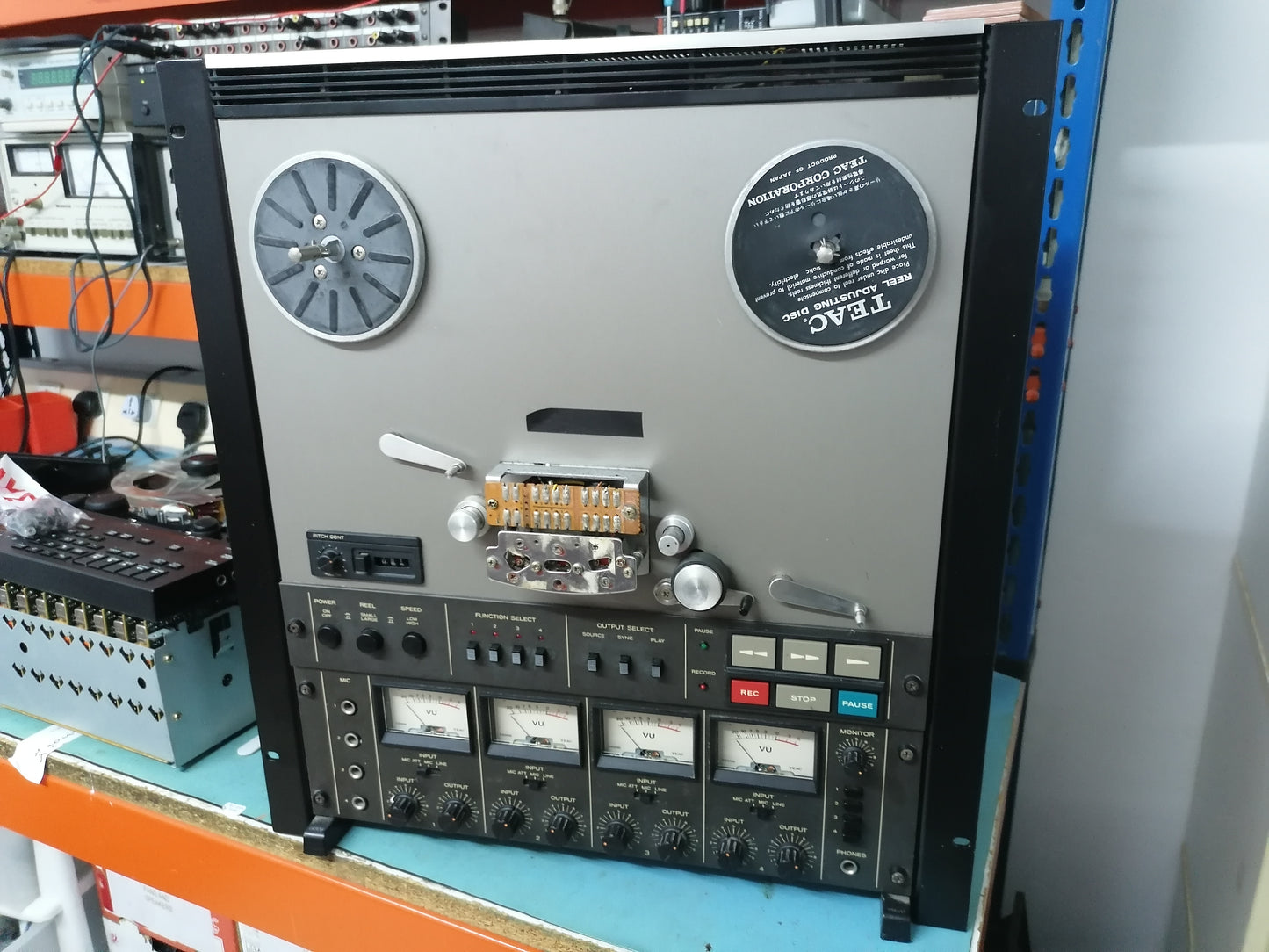

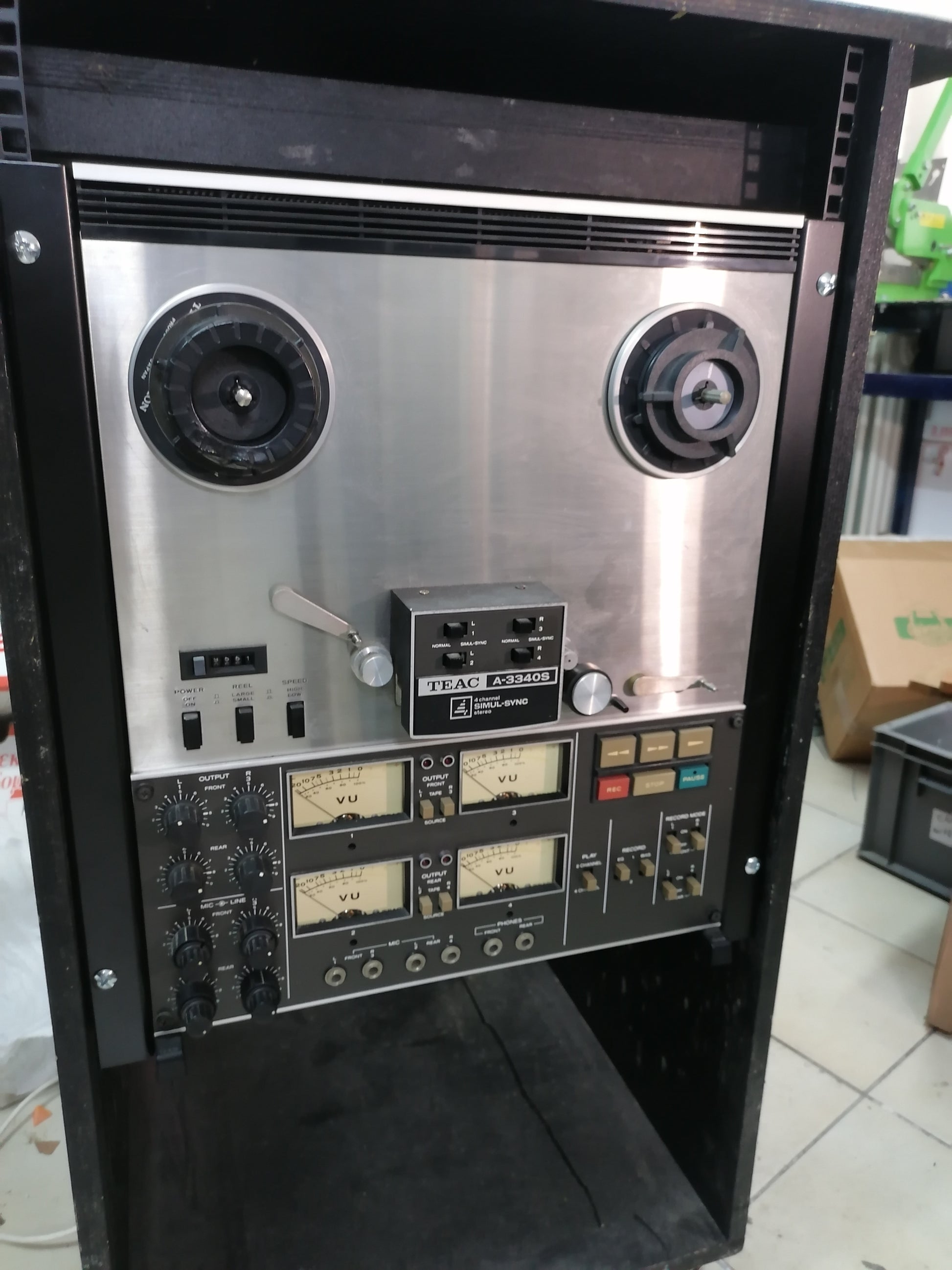

A-3440 A-3340S(maybe)

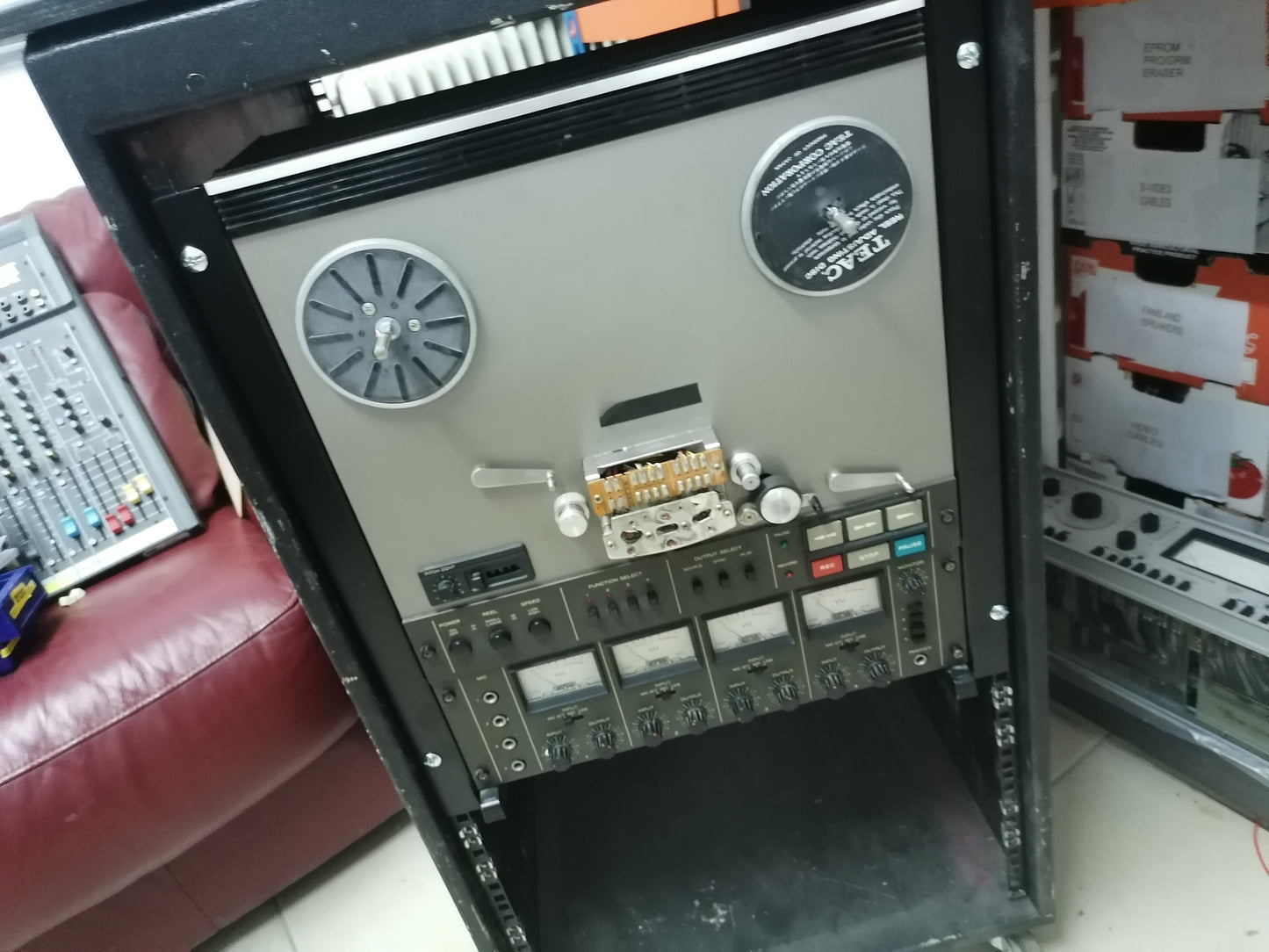

These are the latest delivery but on these its not so straight forward, we have a standard rack here that fits all of our equipment but when we tried to put the A-3440 in it left only a few mm not enough to make a good angle, I know that Teac did a rack kit and it has a good 3cm on each side .

But that does not work in our rack, maybe people bought some rack panel rails  and made a custom rack that would be the way to go if you want to keep the wood.

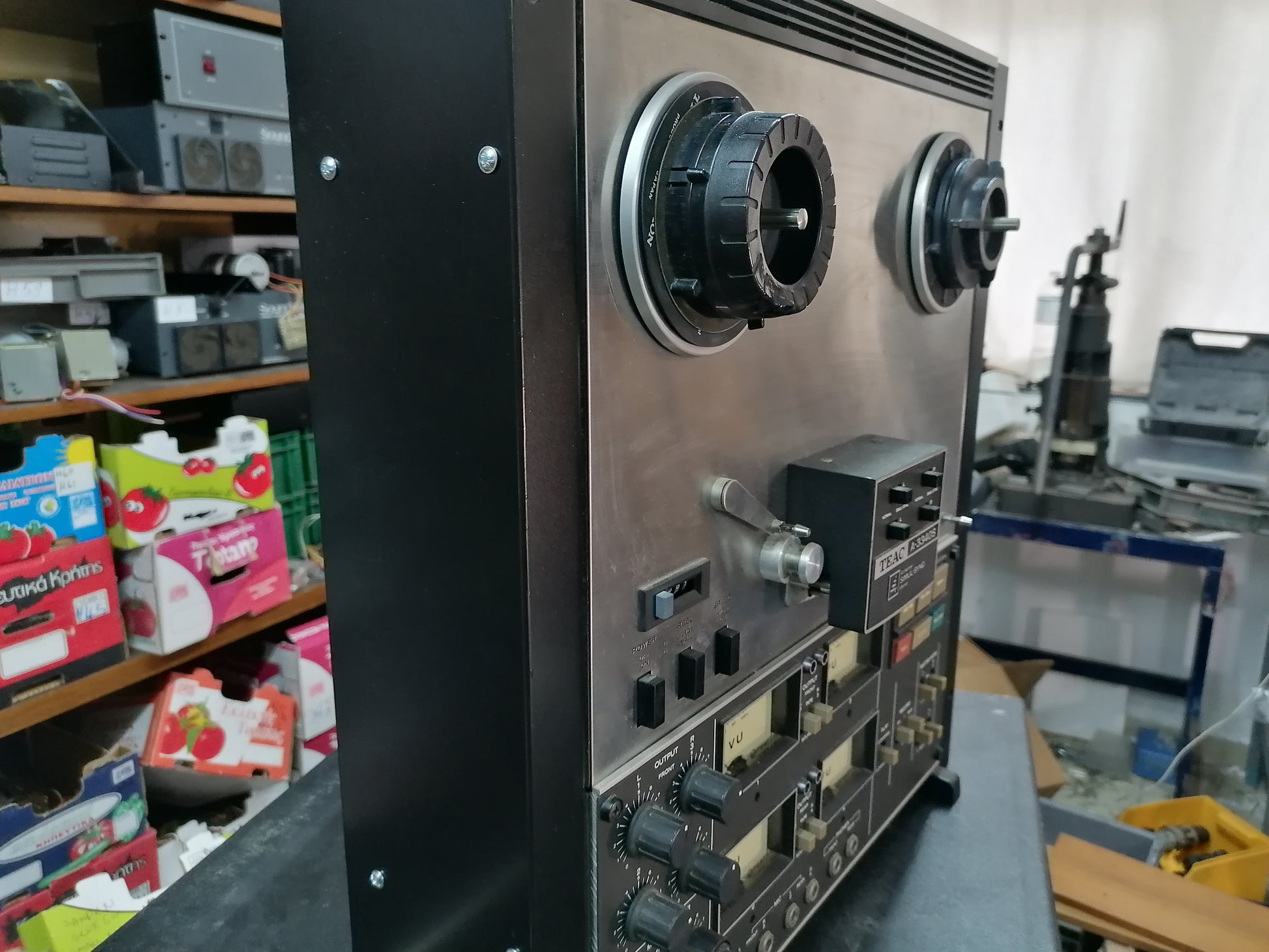

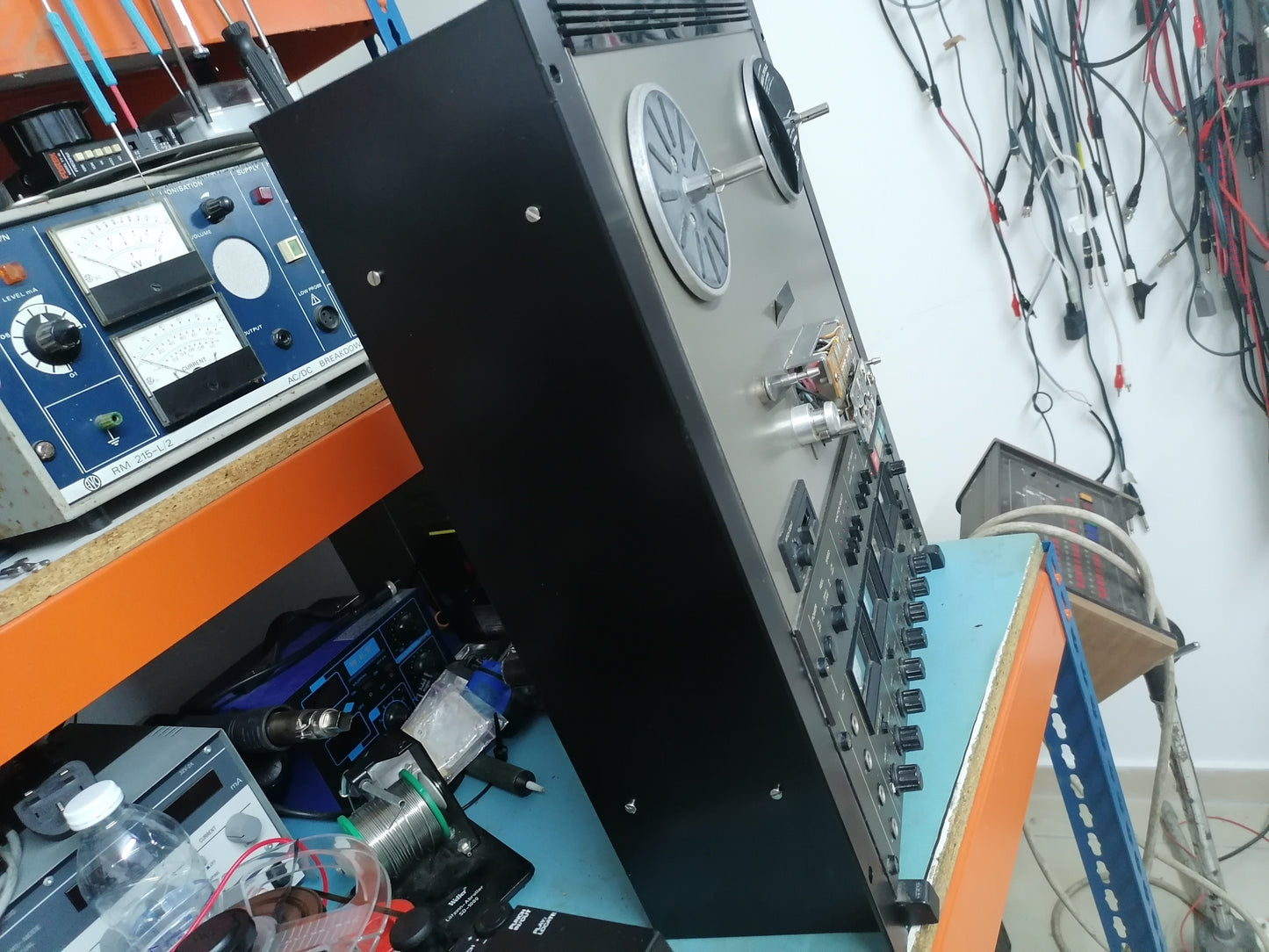

I have removed the wood from my machine here and unlike others manufacturers or the original Teac ones , I have made a full side so its very solid and fitted at 4 points not 2 , as its all metal it makes for a much better screening from buzz and hum.

My rack unit is slightly set back so I had to add some spacing washers, these are not included as I dont know what rack you might have, but included is 2 sets of bolts one for use without the wood panels one for with if that makes sense

These have been made for the A-3440 but I have a feeling they will fit the earlier A-3340S but not the non S version as the woodpanels seem the same, jury out on that for the moment till I get one in





More will follow but I try to find the originals to get the size just right, it maybe that some models fit others in the range, if you have any spare that I can copy let me know, if anyone knows the original designations from the manufacturers parts list that would be helpful
