Ninjas chat

Capstan motors TEAC EM1446 EM1450 thoughts

I have noted (perhaps its just me being stupid) that when these things are new they draw a certain amount of current, best I have seen being 83 mA worse 200+ mA, I was thinking maybe as brushes wear down then more current is drawn but I am not a motor man, but it seems a good way to check if there is some life in the motor or at least what life will be there. Can anyone put me straight here?? I want of course to sell good motors for good prices but also if I know a motor...

Read more →


Tascam tension arms caps problems

I always though that the caps were common on the 30 series and TSR and later 22-2 X series recorders , seems i was wrong, I wanted to put a 22-2 cap on my 38 but it jams the roller seems the internal spigot is bigger on the 38 and the TSR 8.   Here a photo says a 1000 words have a look at the right unit (from a TSR 8) and you can see, of course the TSR8 has more straight sides but the 38 has same front as one on the left (that does not fit) i...

Read more →


Fostex R8 Motor reeling spooling transport problems

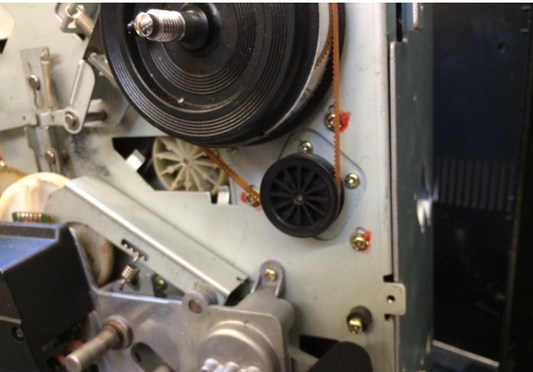

I get asked about the Fostex R8 almost on a daily basis , so will put  this here as it will solve about 80% of peoples problems The R8 uses two reel motors on which both have pressed on them a black plastic pulley, it relies on being pressed on there is no locking pin etc. Many people have been using sticky old Ampex tape or just using their machines a lot. In the end the pulley starts to slip, it may work half way through the reel and then slip or it will not work at all forward or...

Read more →


Teac Tascam Back Bushes news

As most people know these back bushes havea habit of crumbling to pieces, Chris from Lincoln wanted a Tascam 32/34/38 back bush but i did not have one and sent him one of my old Teac 3440 back bushes , they are the ones with the line cut in the rear for a belt and they fitted his newer Tascam. I am not sure if the newer ones can be used in the older models but it seems they work fine, so thats a result Expecting a Portastudio one in next week, I want to see if the knobs from...

Read more →
