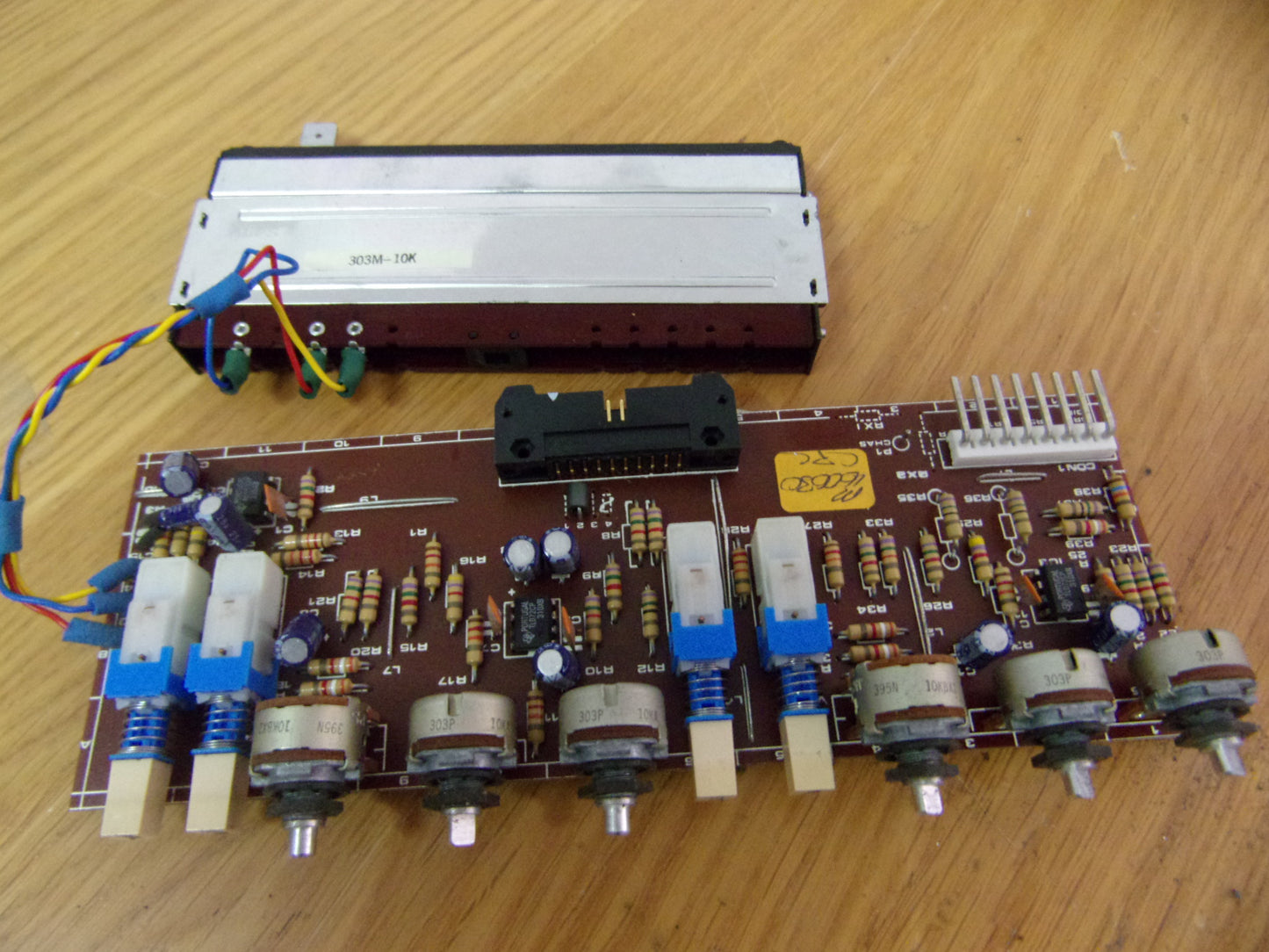

Soundcraft 200 series output module 2002 pcb and fader SC1037 ISS1

This is still a very popular mixer, I have now chopped a 200 400b 800 mixer so that I can offer initially, tested units as is or re-capped and later I hope upgraded audio channels with modern ICS

This is a complete working unit without knobs and caps but includes the fader

No metal work

I have left the fader on in this case as then it means a channel can be changed without any fuss , just remove the two ics cables and nuts on the top and then replace with this, very easy swop out.

I see there is a small ferrite in a slot marked 1-4  so you willneed change that i guess to match the channely you are taking out

Please note there is a small arrow on the black idc socket that has to match up with the one on the board or it will go bang

They made different versions of this mixer for broadcast or studio work often listed as 200B SR etc but this is the original series 200

Some of the modues where they have a suffix are probably compatable but I am not certain about this one

Contact me for postage and delivery options
