Soundcraft 6000 mixer series modules

I bought these from a local studio and they arrived all nicely packed.

The 6000 was and is a good mixer and was produced to give the best mixers of the day a run for the money, think it came out in 1988.

A fully loaded one could cost 40,000$ so it was not a cheap one.

Famous for a very high headroom with many producers.

I do not have a mixer to test these modules but I am selling them as fully working with guarantee, if I find a local one I can test them, A recap is also possible then.

They will come as a complete module you only need make two connections as far as i can see straight into the loom.

I will supply these with all knobs and the fader but I only have a few fader caps so first come first served on those

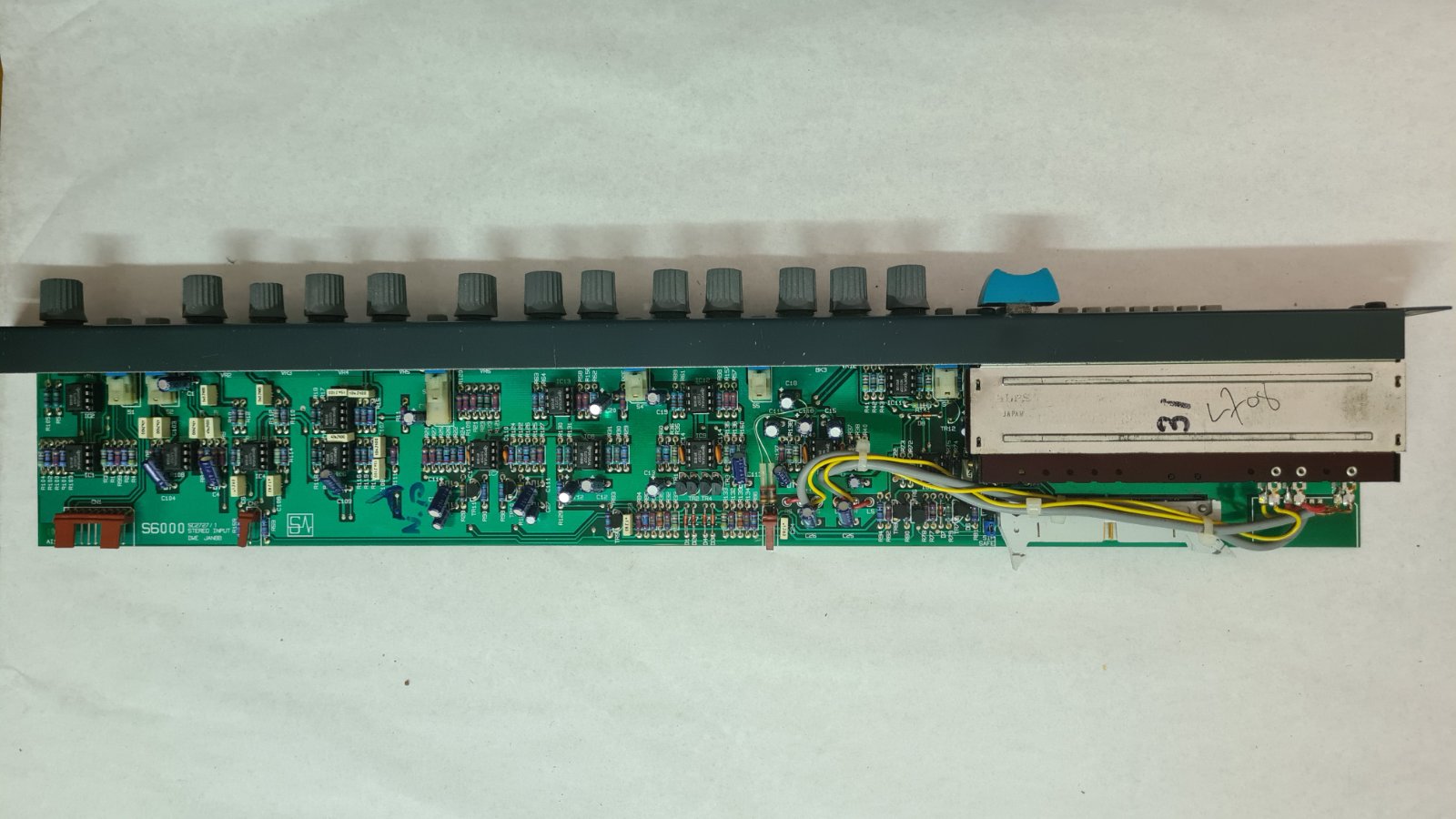

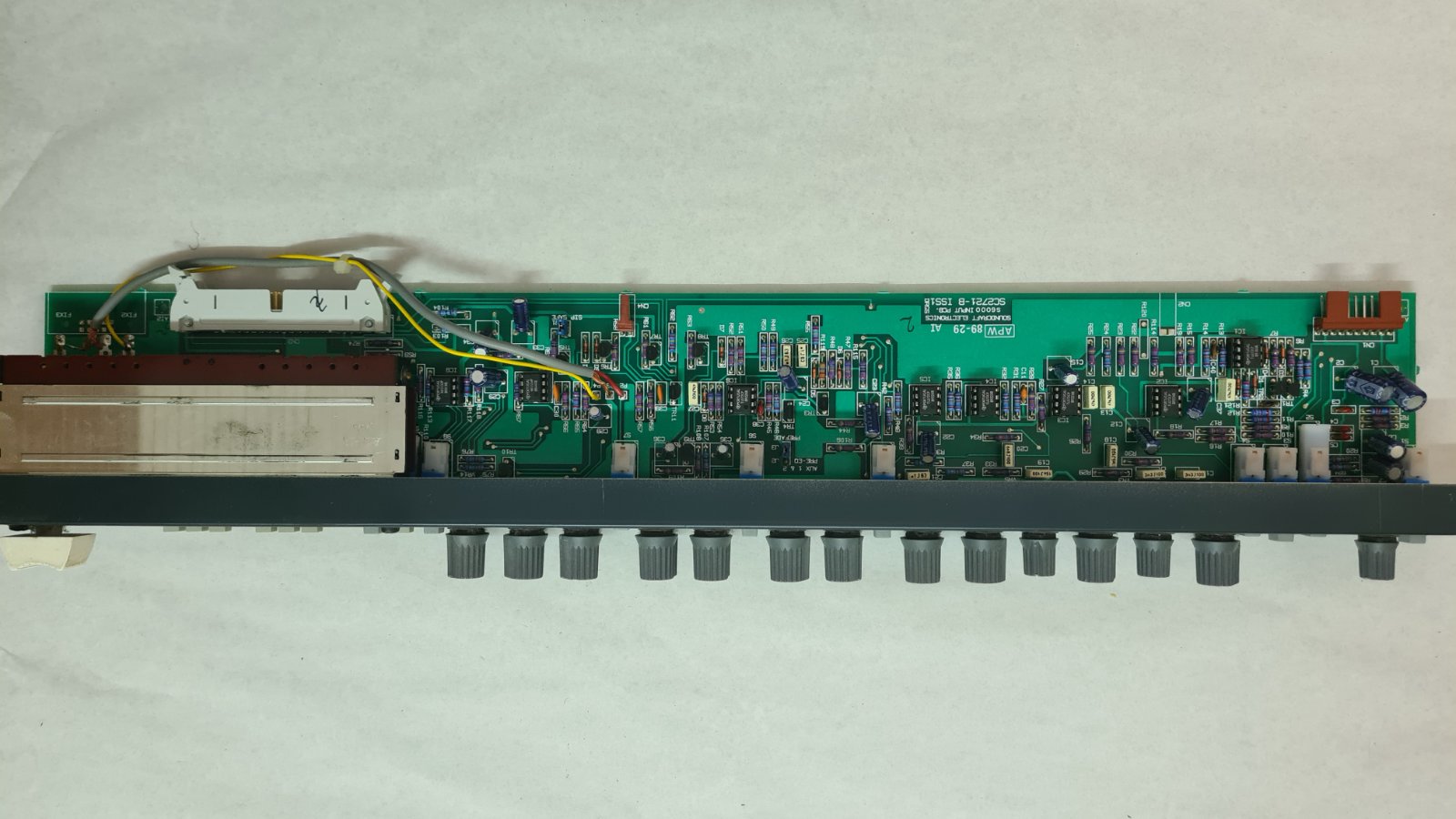

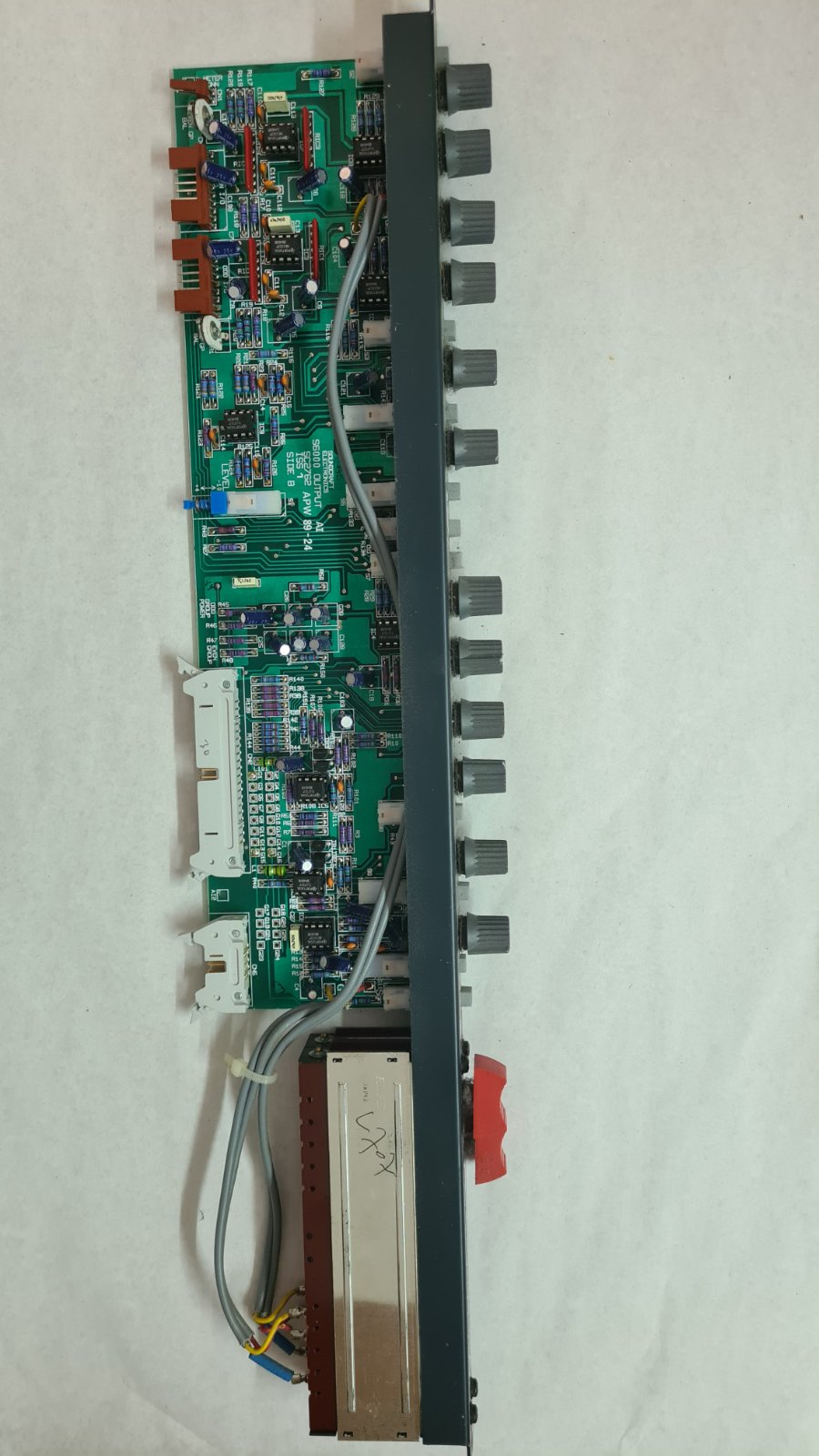

Whats interesting here is that you can see the progression from the earlier boards to the big desk models, all IC,s are in sockets and the consul is modular so bad channels can be pulled easily off

I have for the 6000 series

Module input number 6101 ( that's market above the 48 volt phantom button at the channel top )internally marked on the PCB is SC2721B ISS 1

SOUNDCRAFT 6000 6101 OUTPUT CHANNEL PCB SC2762 ISS1

SOUNDCRAFT 6000 6111 OUTPUT CHANNEL SC2762 ISS1

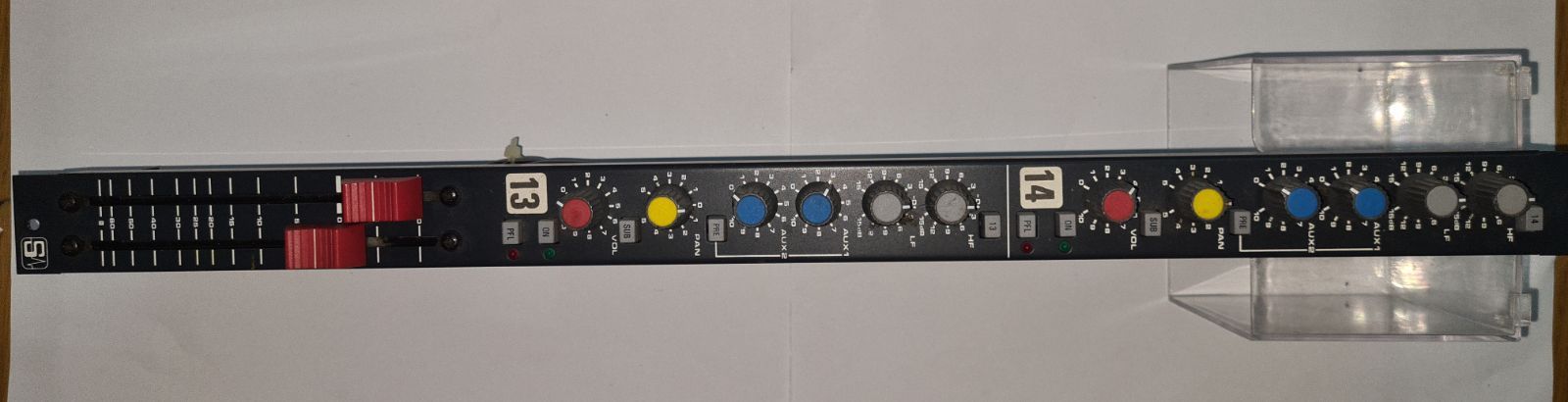

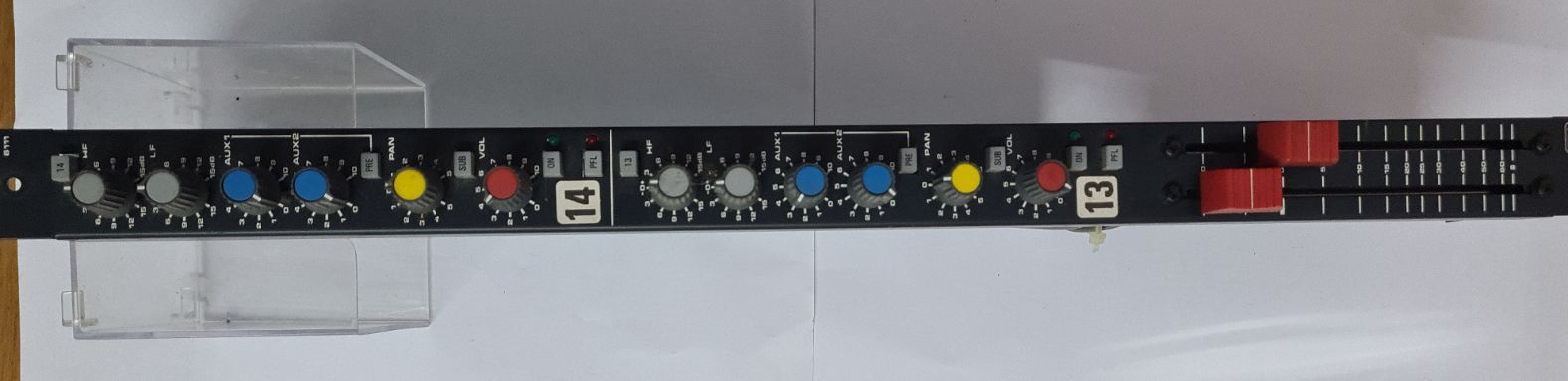

SOUNDCRAFT 6000 6113 STEREO INPUT CHANNEL SC2727 ISS 1

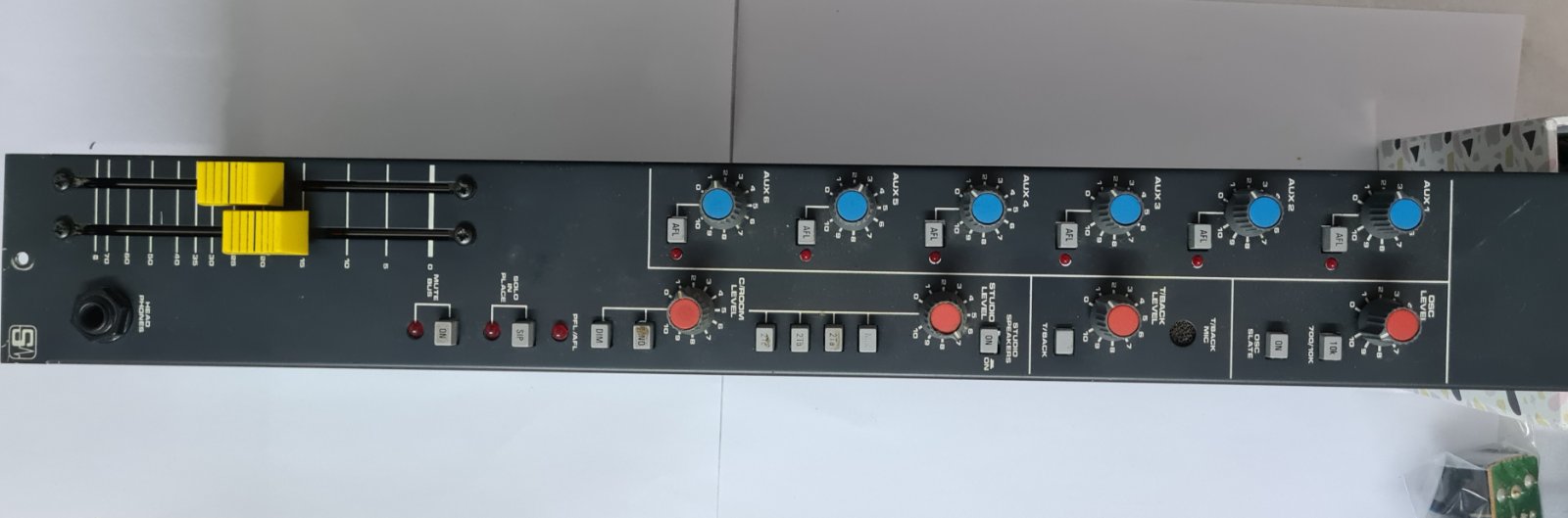

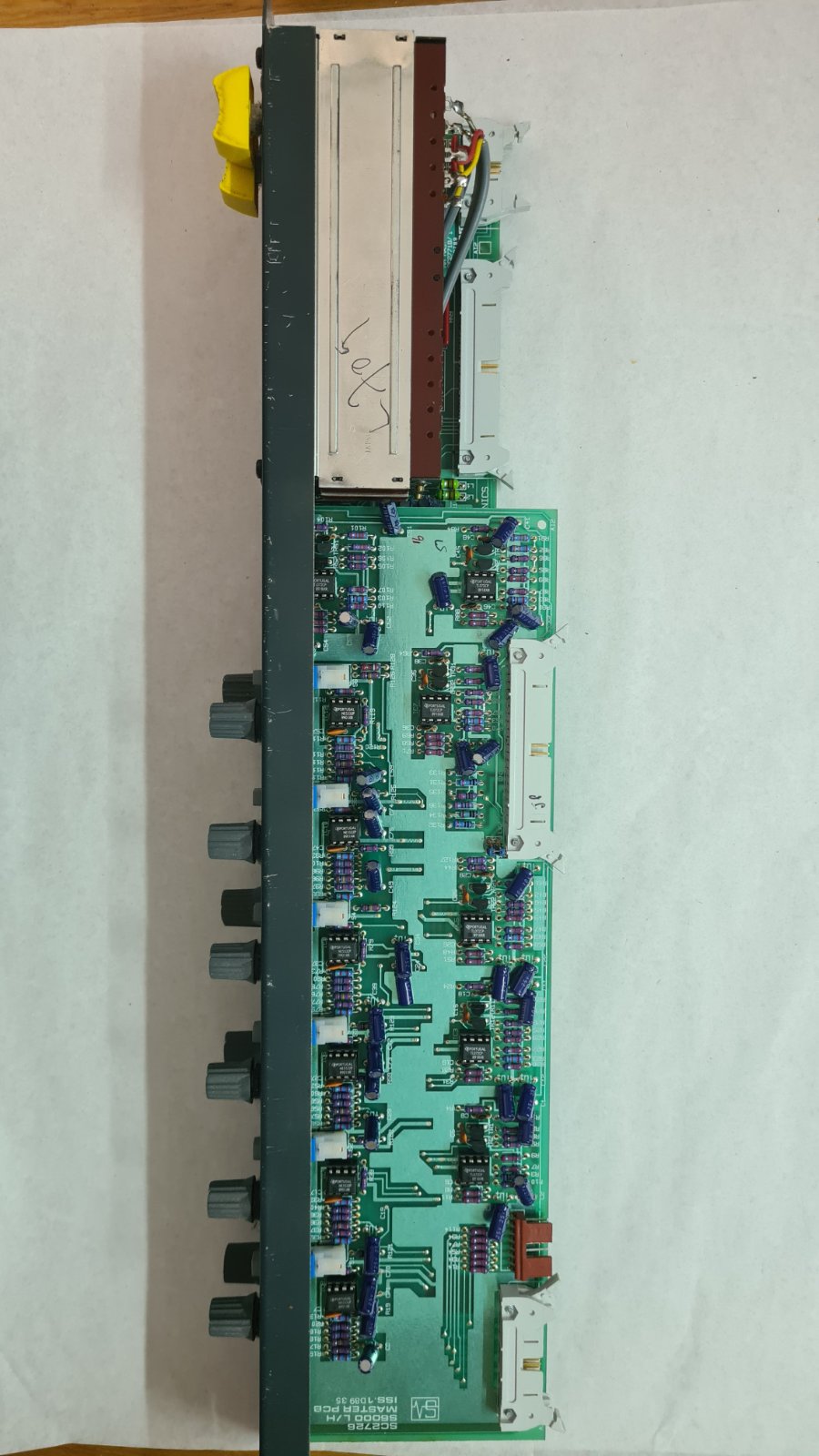

SOUNDCRAFT 6000 6110 SC2726 L/H MASTER PCB AND SC2771A/A RH MASTER
