These are some of the internal leads from My Spirit Studio and Spirit live mixers, they seem to use a common format and I am guessing that was the same on many others they of course can be chopped down for smaller units
Lead 1 marked ELCO EX/YF 0035 HAS 23 CONNECTORS 24 WAY
lead 1 total length 1 metre 18 connectors just under 4cm apart then 8cm then another 5 4cm 24 pin socket single in line i.e for single headers.
Lead 2 Not marked has 29 connectors 24 way 2 do not have the rear cable clamp but it looks like it was meant to be that way not sure, maybe its missing channel or where is the case
lead 2 1.4 metres 28 connectors approx 5cm apart then 10cm and a single one 24 pins single inline as above
Lead 3 marked ELCO DE/YE has 9 connectors 24 way
Lead 4 marked elco es/yf 0039 19 by 8 way
Lead 5 5-8 way

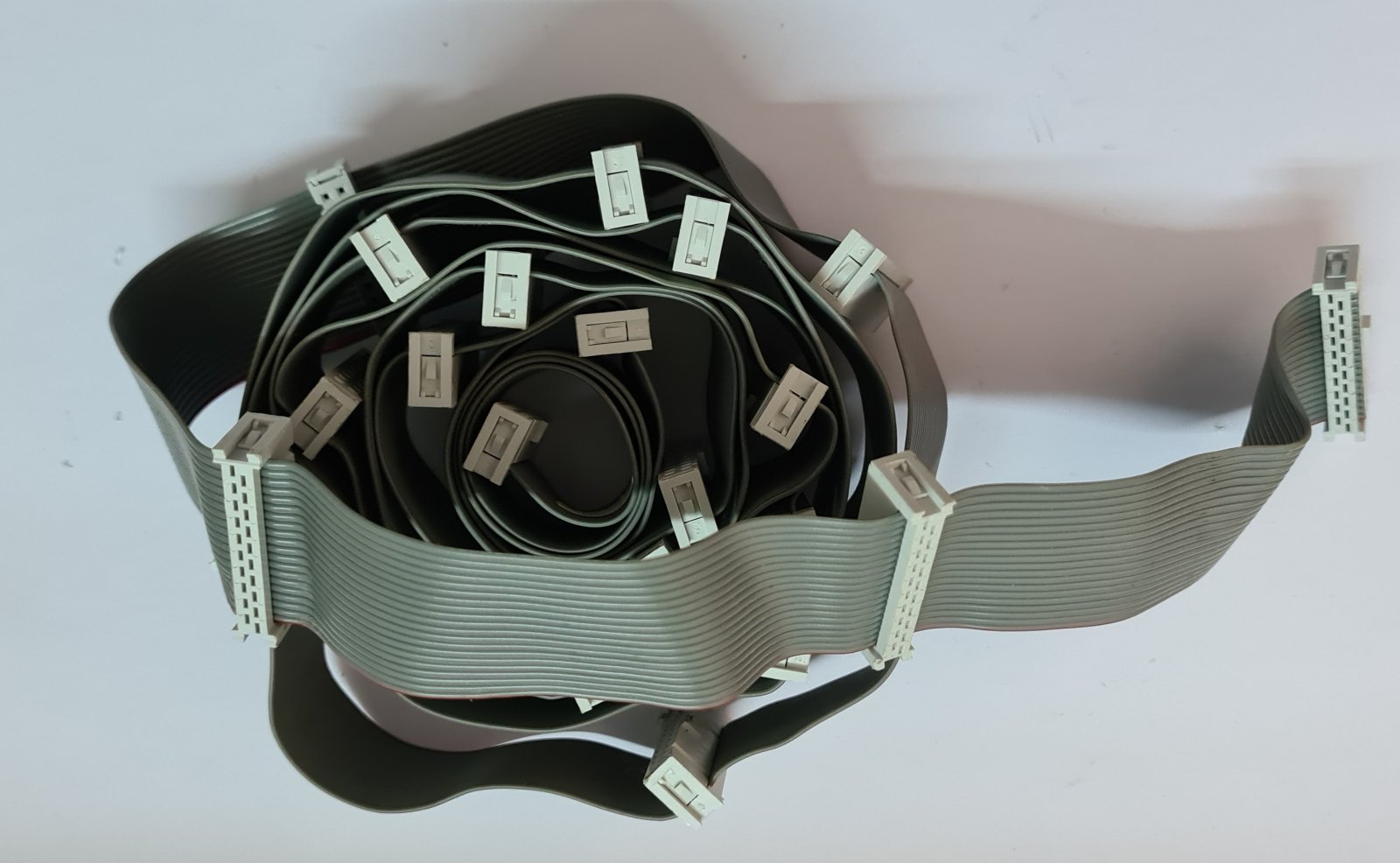

Lead 6 soundcraft ghost 6 20 way idc connectors (2x10)
Lead 7 21 x 24 single way plugs
Lead 8 14x 8 way single marked elco te/yg 0038

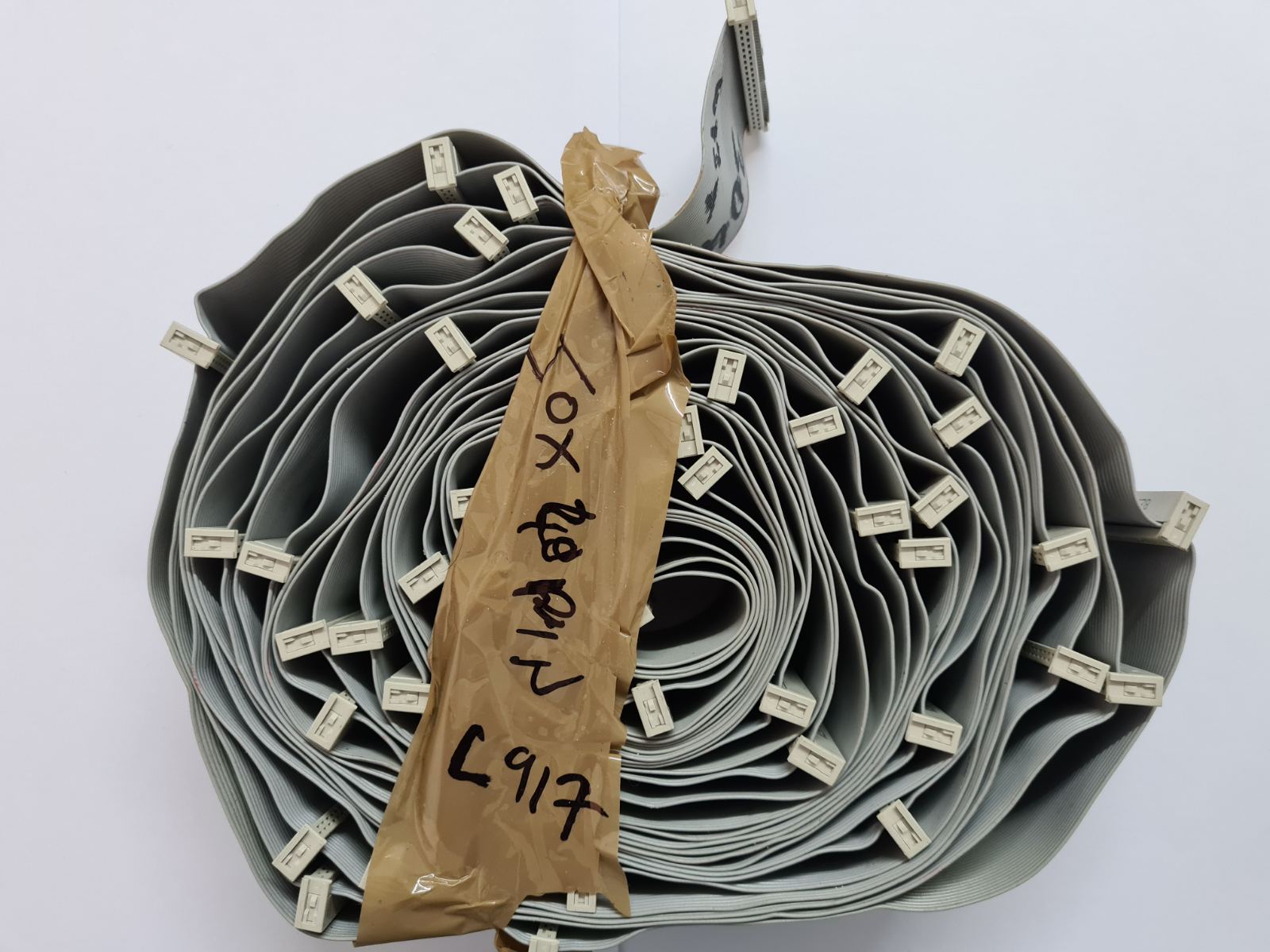

Lead 9 32 x 40 way idc long lead from a broadcast console guess its 3 metres long
Lead 10 Soundcraft 25 40 way idc cable RV-3I85-T R-2111 big console cable
Lead 11 Soundcraft 8 40 way idc cable RV-3186-T R-1111
Lead 12 Soundcraft 7 16 way IDC cable RV-3286-T R-1111
Lead 13 Soundcraft 25 40 way idc cable RV-3886-t big console cable
Lead 14 Soundcraft 25 34 way IDC cable RV3882-T big console cable
Lead 15 Soundcraft idc cable 21x26pin 3176 (maybe from a K1)
Lead 16 Soundcraft idc cable 33 x 40pin RV 3889-T7
Lead 17 Soundcraft idc cable 33 x 34pin RV-3885-T
Lead 18 40 x 24 pin single line connector
Lead 19 47 x 34 pin large desk connector
Lead 20 33 x 24 pin single line connector
Lead 21 Ghost 22 x 40 dual idc connector
Lead 22 Ghost 22 x 20 dual idc connector
Lead 23 17x 34pin RV3887
Lead 24 14 x 50 pin RV3041
Lead 25 9 x 50 pin RV3038
Lead 26 14 x 50pin RV3039
Lead 27 50 x 40 pin RV3042
Lead 28 17 x 50 pin RV3040
