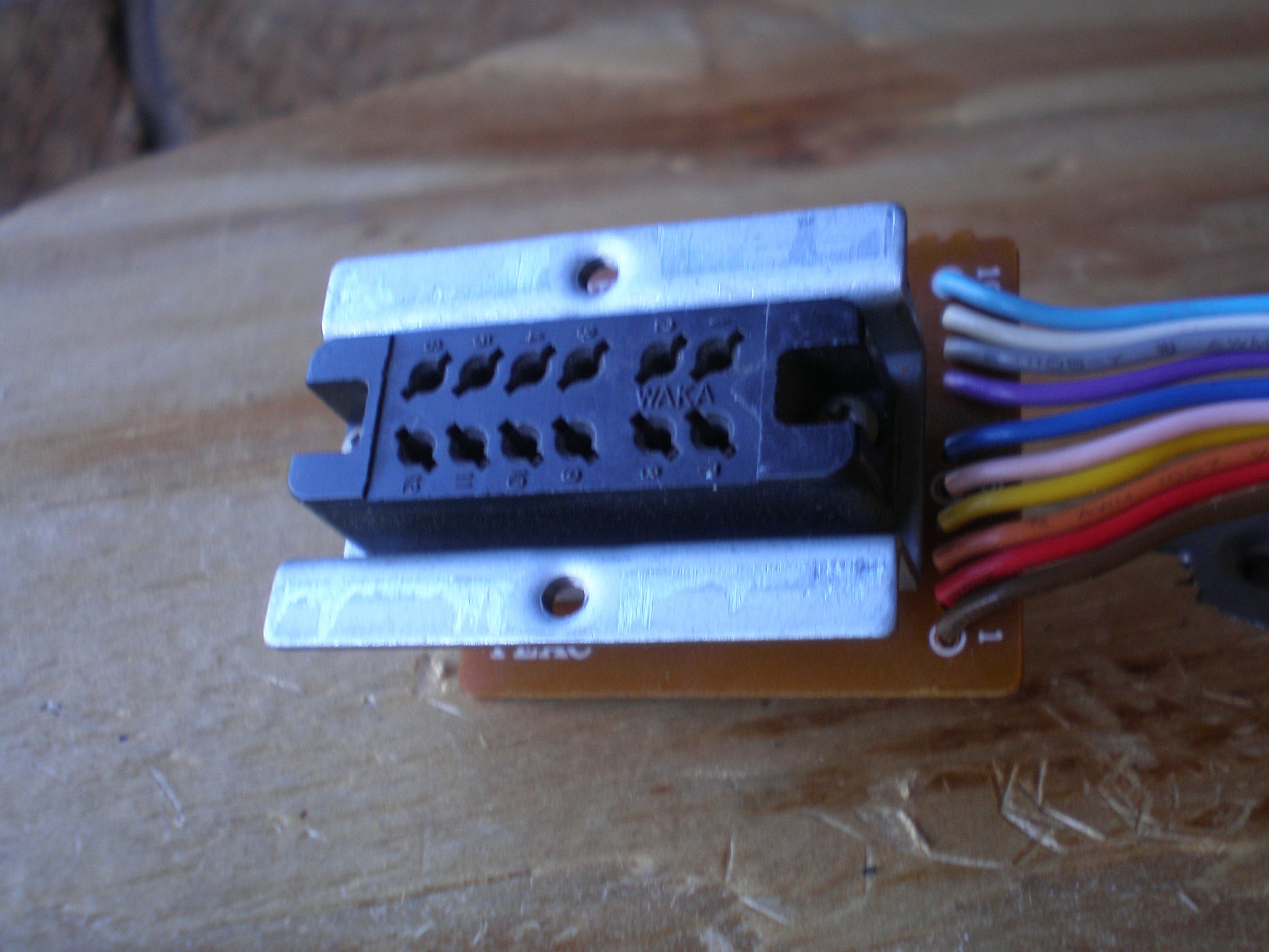

Tascam 38 remote 12 pin socket used on 32 34 34b 388 and others waka style 52100737-00

Tascam 38 remote 12 pin socket used on 32 34 34b 388 and others waka style 52100737-00

£12.00

This is the standard socket used on many of the Tascam units, I am trying to source them but seems they are no longer made



For information

Pin1 to Play cold side buttton

Pin2 to FF cold side button

Pin 3 to RW cold side button

Pin 4 to Stop cold side button

Pin 5 to Pause cold side button

Pin 6 to Record Cold side button

Pin 7 not used

Pin 8 common hot side all buttons

Pin 9 Not used

Pin 10 Pause led via a 470 ohm resistor

Pin 11 Leds common

Pin 12 Rec led via a 470 ohm resistor
