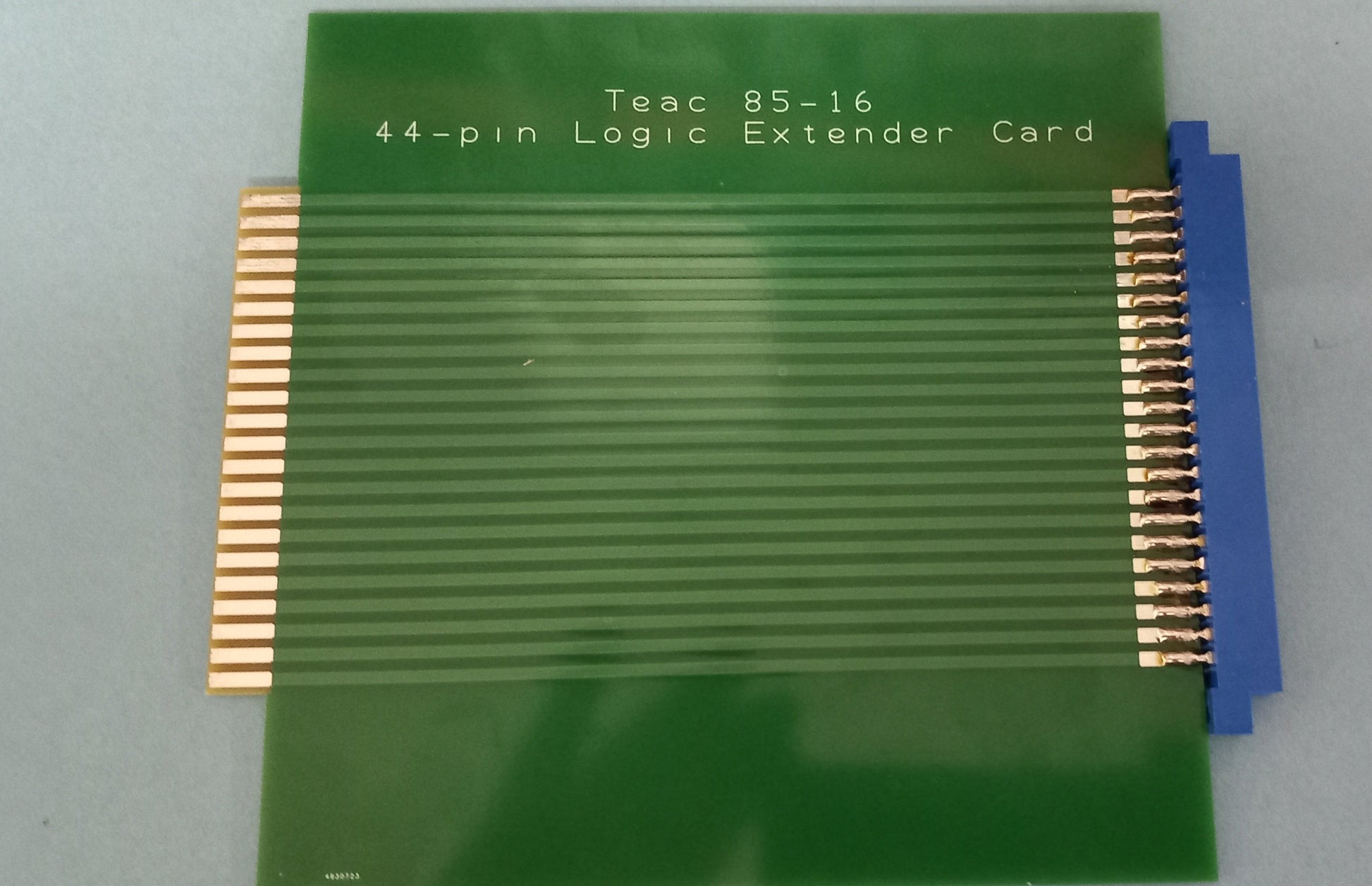

Teac 85-16 85-16B head extension card new 44pin or 56 pin 0.156 edge connector

I have in my own collection an 85-16B.

Teac Supplied for free the extender card for the Dbx and record/play pcbs, inside the the 85-16 and 16B

They did not however, give the extender cards, for the circuit boards at the very top of the machine, (one day I hope I will get around to repairing mine).

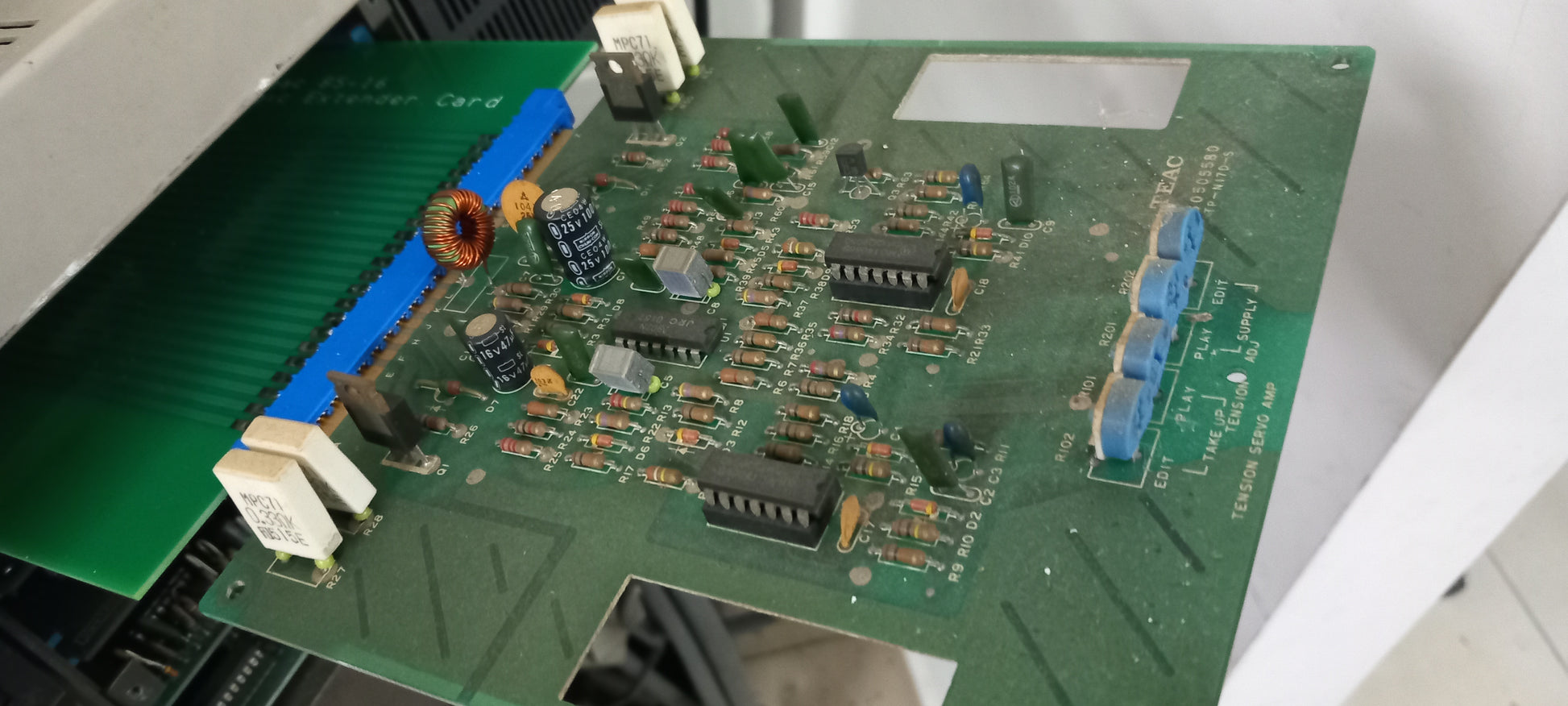

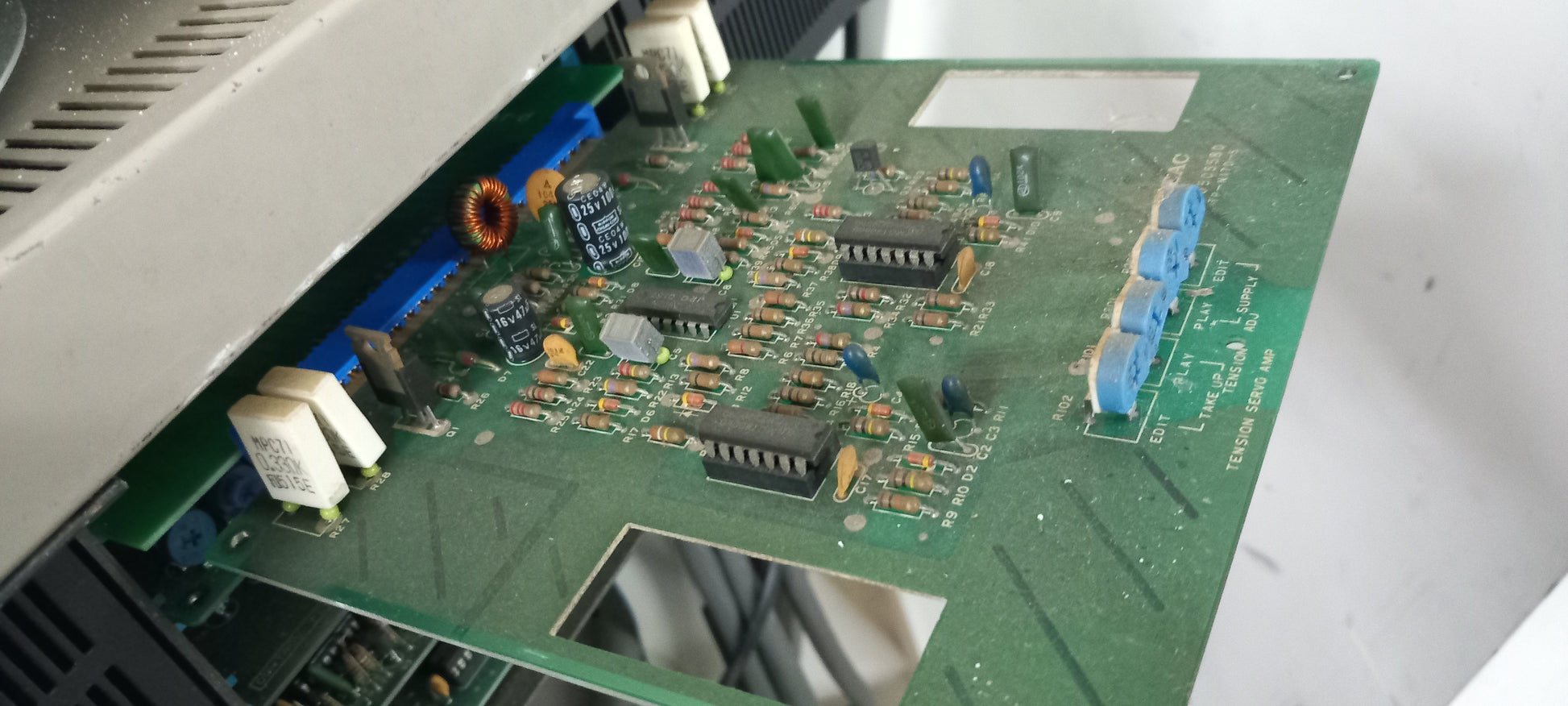

I had a few extra faulty cards , but they are impossible to test if they are in the unit , so you need this extender. I am guessing, that the main units should have gone back to Teac, or a Teac test centre, as were deemed too complicated to be tested by the average user.

So I have had these made for me plus a few extra, for serious Tapeheads and service shops that need to keep these machines going.

For ages I was waiting for any to turn up, but to no avail so had to have them made,  I have never seen a 90-16 as maybe are used there or in other early Teac's.

Of course they can be used in other applications as the connectors are still a standard

Board is about 175mm long and  155mm wide to suit the 86-16 series

I can make others if anyone is interested
